Products

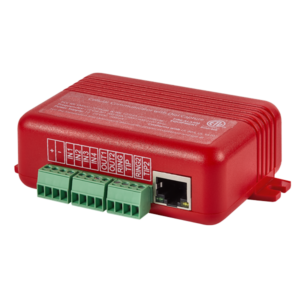

5535CF
Commercial Fire Solution

Looking to expand your capabilities into commercial fire? The 5535CF is the perfect compliment to any alarm dealer wanting to increase the monthly recurring revenue and add to their product offering.

With the new 5535CF you get these compelling features:

  • Multi-band CAT M1 LTE 700/850/1700/1900/2100 MHz cellular communicator for AT&T and Verizon LTE-M networks
  • Dual-SIM for AT&T/Verizon
  • Dual Ring & Tip
  • Dial Capture interface supporting ContactID, SIA and Pulse 4+2
  • 4 digital inputs, 2 digital outputs (programmable)
  • Dual-path: LAN and cellular channels
  • Supply voltage: +12 to +30 VDC
  • Power Consumption: Nominal 50mA, Peak 200 mA
  • Compact Dimensions: 2.48″ x 3.54″ x 1.26″
  • Weight: 2.65 oz (75 g) without antenna

Conforms to UL Standards:

  • UL 864 – for Control Units and Accessories for Fire Alarm Systems, listed as a sole path cellular
  • UL 1610 – for Central-Station Burglar-Alarm Units
